Introduction
Welcome to another blog in the series of Advanced Frida Usage. There is a very interesting API provided by frida called Memory.scan() which can help you to scan bytes from the memory and also helps you to patch them as well. Analyzing a program can be challenging, particularly when attempting to statically identify the locations of specific bytes, especially in scenarios where the program exhibits polymorphic behavior.
To better understand how one can utilize Memory.scan() API of frida lets consider our sample application where after launching it you can see that it is asking for a PIN from the user. When a valid
Application Details
Name: PaymentApp
Package Name: com.eightksec.paymentapp
SHA-256 Hash: f32090399de968550f16d1c0e163297281449b42cc2b773107091afc09c4b2ad
All the binaries used in the Frida series can be found at https://github.com/8kSec/Blog-resources
Analysis
Lets dive into the analysis of this application. To analyze the apk we first need to extract this apk and for that we use apktool
apktool d app-release.apk
the name “app-release”. Go inside app-release/lib/arm64-v8a directory because thats where the native library is present with the name “libpaymentapp.so”. This is the library responsible for checking the logic for user PIN verification. So, to analyze this library we are going to use radare2 which is a command line disassembler with some powerful features. If radare2 is not installed on
pip3 install radare2
radare2 is installed you can simply open this libpaymentapp.so library into this using r2 <binary_name>
r2 libpaymentapp.so
radare to start the analysis using afl
[0x0000080c]> aaaaaa
INFO: Analyze all flags starting with sym. and entry0 (aa)INFO: Analyze all functions arguments/locals (afva@@@F)INFO: Analyze function calls (aac)INFO: Analyze len bytes of instructions for references (aar)INFO: Finding and parsing C++ vtables (avrr)INFO: Finding function preludes (aap)INFO: Finding xrefs in noncode section (e anal.in=io.maps.x)INFO: Analyze value pointers (aav)INFO: aav: 0x00000000-0x000019f0 in 0x0-0x19f0
INFO: Emulate functions to find computed references (aaef)INFO: Type matching analysis for all functions (aaft)INFO: Propagate noreturn information (aanr)INFO: Scanning for strings constructed in code (/azs)INFO: Enable anal.types.constraint for experimental type propagation
INFO: Reanalizing graph references to improve function count (aarr)[0x0000080c]>
[0x0000080c]> afl
0x0000080c 1 16 entry0
0x000018c0 3 124 sym.Java_com_eightksec_paymentapp_MainActivity_getEncryptedData
0x0000086c 46 4180 fcn.0000086c
0x000019d0 1 16 sym.imp.strcmp
0x000019e0 1 16 sym.imp.__stack_chk_fail
0x00001960 1 16 sym.imp.__cxa_finalize
0x00001970 1 16 sym.imp.__cxa_atexit
0x00001980 1 16 sym.imp.__register_atfork
0x00001990 1 16 sym.imp.strlen
0x000019a0 1 16 sym.imp.malloc
0x000019b0 1 16 sym.imp.fwrite
0x000019c0 1 16 sym.imp.perror
0x00001940 1 20 section..plt
function called getEncryptedData which looks interesting. Lets see the disassembly of this function to better understand whats
[0x0000080c]> s sym.Java_com_eightksec_paymentapp_MainActivity_getEncryptedData
[0x000018c0]> pdf

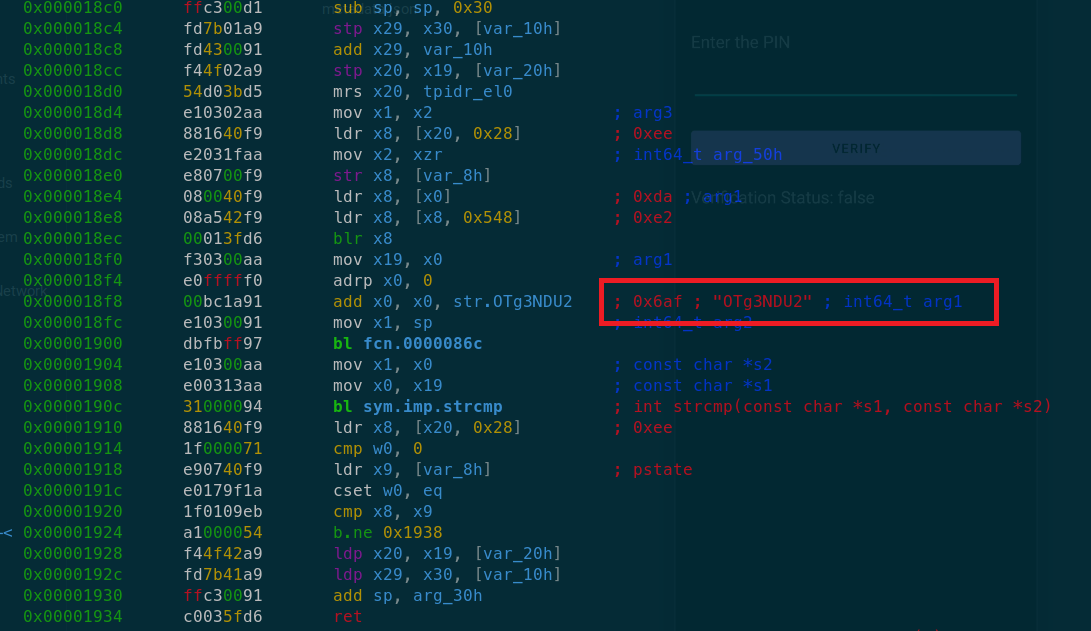

we can see that there is one string OTg3NDU2 which radare2 has recognized and this string is getting stored into x0 register right before bl fcn.0000086c function call which suggests that this string is being passed as an

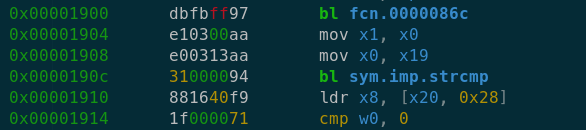

fcn.0000086c function call we can observe strcmp() function call. Based on this we can assume that there is some kind of processing being done on this OTg3NDU2 string and after that it is passed to strcmp() function for string comparison. Most likely this string comparison function is used to compare the PIN entered by the user with the one which is hardcoded in the app.
Now obviously the string which we have identified i.e OTg3NDU2 is not the PIN itself because in the app input we cannot enter alphanumeric characters. So the PIN has to be in digits like “111111” only.
Based on this analysis we can say that the function fcn.000086c might be responsible for decrypting or decoding this string.
Lets try to dig into this function a bit to figure out what kind of
[0x000018c0]> s fcn.0000086c
[0x0000086c]> pdf
Do you want to print 1109 lines? (y/N) y

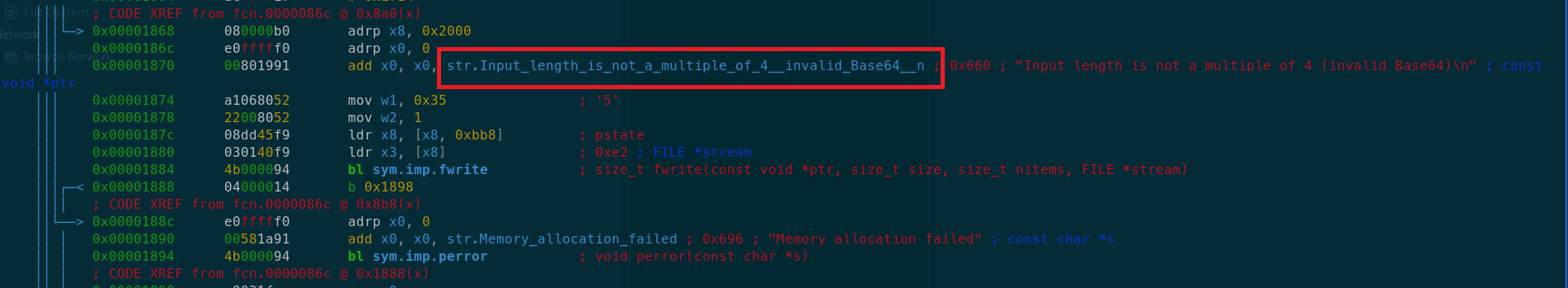

instructions but if you scroll all the way to the end at offset 0x1870
suggests that there is some kind of bsae64 encoding happening. Okay so now we know that the application is having hardcoded PIN in the form of base64 i.e OTg3NDU2.
Now using frida’s Memory.scan() API we are going to find this string in the application at runtime. So Memory.scan() API takes basically four arguments: 1. Module base address. 2. Module size. 3. Search Pattern. 4. Callback function.
Lets write our frida script now. As we now know that we need the module details like module base address where the module is loaded in memory and the size of the module which in this case is libpaymentapp.so, we need to perform early hooking to trace the libraries which are being loaded by the linker itself when the
Process.findModuleByName("linker64").enumerateSymbols().forEach(function(symbol){
if(symbol.name.indexOf("do_dlopen") >= 0){
do_dlopen = symbol.address; }
if(symbol.name.indexOf("call_constructor") >= 0){
call_constructor = symbol.address; }
});
do_dlopen and call_constructor functions which are the internal functions of the linker responsible for loading the libraries into the memory we
var lib_loaded = 0;
var module = null;
Interceptor.attach(do_dlopen, function() {
var library_path = this.context.x0.readCString();
if (library_path.indexOf("libpaymentapp.so") >= 0) {
Interceptor.attach(call_constructor, function() {
if (lib_loaded == 0) {
lib_loaded = 1;
module = Process.findModuleByName("libpaymentapp.so");
console.log(`[+] libpaymentapp is loaded at ${module.base}`);
}
})
}
});
by the linker so to make sure not to attach our hook multiple times we are using this lib_loaded flag which is initially set to 0.
Lets give this script a try once and see whether libpaymentapp.so
frida -U -l memscan.js -f com.eightksec.paymentapp
____ / _ | Frida 16.2.1 - A world-class dynamic instrumentation toolkit
| (_| | > _ | Commands: /_/ |_| help -> Displays the help system
. . . . object? -> Display information about 'object' . . . . exit/quit -> Exit
. . . .
. . . . More info at https://frida.re/docs/home/
. . . .
. . . . Connected to KB2001 (id=1d6f12b3)Spawned `com.eightksec.paymentapp`. Resuming main thread!
[KB2001::com.eightksec.paymentapp ]-> [+] libpaymentapp is loaded at 0x7893525000
[KB2001::com.eightksec.paymentapp ]->
libpaymentapp is loaded at 0x7893525000. Nice!
Lets now create a function called scan(module) which
function scan(module) {
Memory.scan(module.base, module.size, "4F 54 67 33 4E 44 55 32", {
onMatch(address, size) {
const string = Memory.readUtf8String(address, size);
console.log(`Found string at address ${address}: ${string}`);
onError(reason) {
console.error(`Error scanning memory: ${reason}`);
}, onComplete() {
console.log('Memory scan complete.');
},
});
}

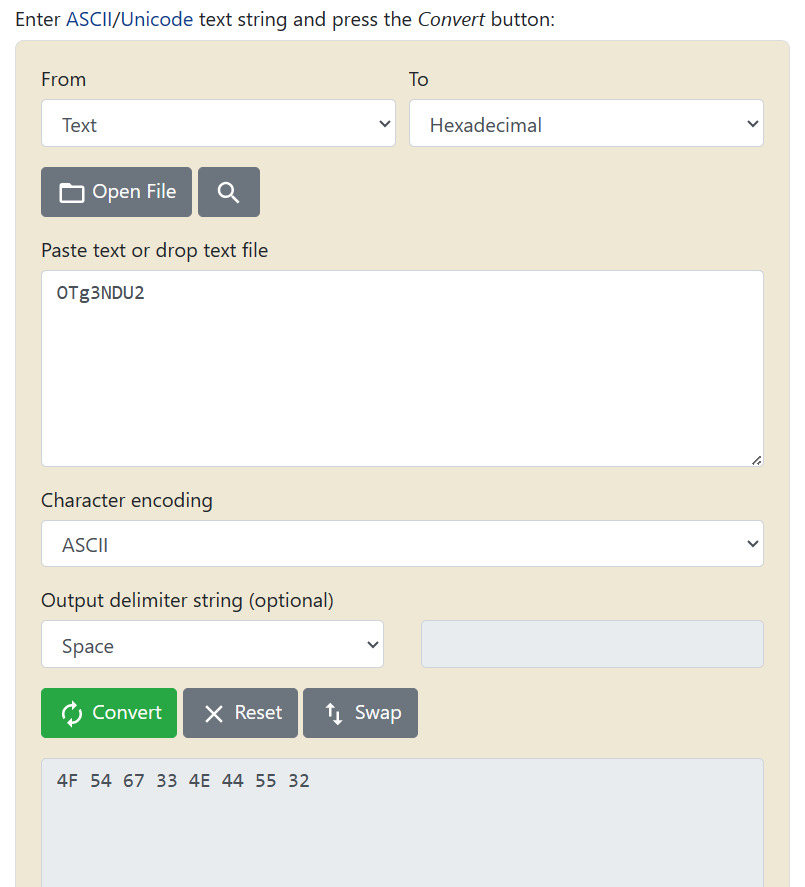

OTg3NDU2 to 4F 54 67 33 4E 44 55 32. Its not so difficult. These are just ascii values of each character in the string in hex. To calculate it automatically instead of manually converting each character we have a website called rapidtables:
used in the script. Then finally we have some useful callbacks like onMatch, onComplete and onError. onMatch callback will get triggered when the pattern which we have defined is found in the memory. If there will be any issue with the memory scanning for example if the memory region is not readable then it will throw error which we can capture in onError callback. Okay, so now we have defined our Memory scan API lets try to
Spawned `com.eightksec.paymentapp`. Resuming main thread!
[KB2001::com.eightksec.paymentapp ]-> [+] libpaymentapp is loaded at 0x7892cd5000
Found string at address 0x7892cd56af: OTg3NDU2
Memory scan complete.
OTg3NDU2 in memory at address 0x7892cd56af.

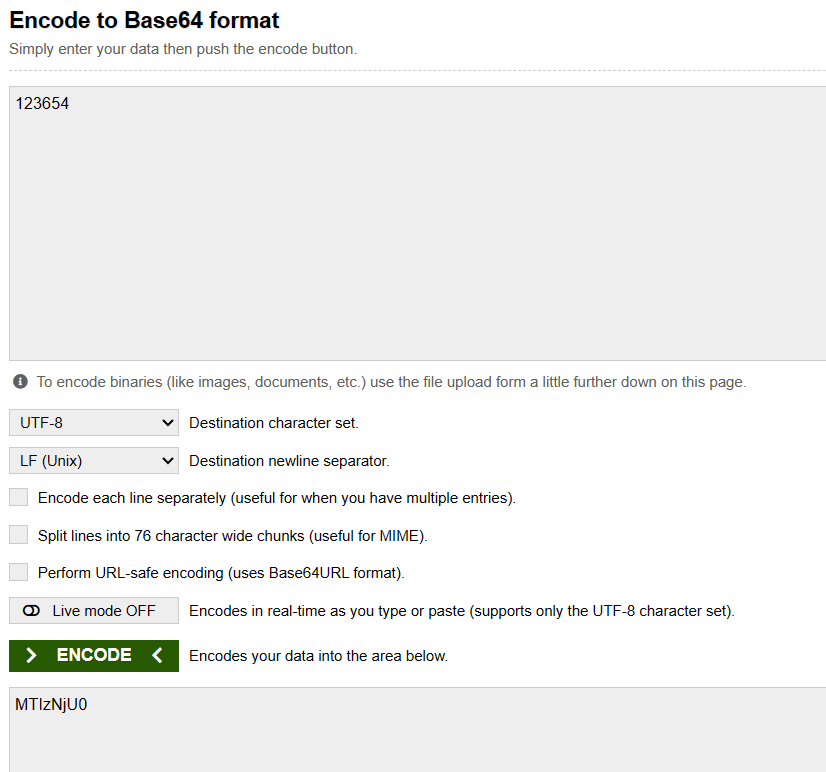

Now, lets try to replace this hardcoded base64 string with our base64 encoded string in order to validate the PIN verification. Once the encryption or encoding scheme is identified its not very difficult to replicate it to generate string with your own input. For instance in this case i want to get base64 encoded string for PIN “123654”. We can use another online tool called base64encode: https://www.base64encode.org
MTIzNjU0 as base64 encoded PIN. Next, we want to replace it with the original hardcoded string present in memory. So, for that we can use another API of frida called writeByteArray(). This API takes one argument which is bytes in the form of array. It basically replaces the bytes to the memory address from where it is called.
onMatch(address, size) {
const string = Memory.readUtf8String(address, size);
console.log(`Found string at address ${address}: ${string}`);
address.writeByteArray([0x4D, 0x54, 0x49, 0x7A, 0x4E, 0x6A, 0x55, 0x30]);
},
onMatch callback function of our Memory.scan() API, we are calling this and here we have again used rapidtables to convert MTIzNjU0 to 4D 54 49 7A 4E 6A 55 30

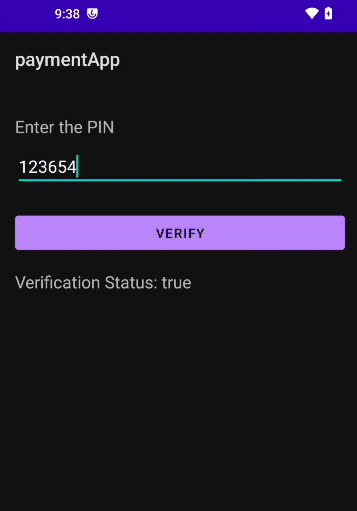

Lets try to run the script and this time enter “123654” as PIN. If correct bytes were replaced then we should get Verification status as
Spawned `com.eightksec.paymentapp`.Resuming main thread![KB2001::com.eightksec.paymentapp] - > [+] libpaymentapp is loaded at 0x78971d4000F ound string at address 0x78971d46af: OTg3NDU2
Error: access violation accessing 0x78971d46af at(frida / runtime / core.js: 151)
at onMatch(/home/kali / Documents / Blogs / 8 KSec / MemoryScanning / memscan.js: 27)
is happening because the memory region where the string is present is only readable and not writable. So in order to fix it we have to use another Memory based API of frida called Memory.protect(). This API takes three arguments: 1. Address 2. Size (For 64-bit its 8bytes) 3. Permission (r–, rw-,rwx), where r stands for read, w stands for write and x stands for executable.
Lets call it in our script before writeByteArray() API
onMatch(address, size) {
const string = Memory.readUtf8String(address, size);
console.log(`Found string at address ${address}: ${string}`);
Memory.protect(address, Process.pointerSize, 'rwx');
address.writeByteArray([0x4D, 0x54, 0x49, 0x7A, 0x4E, 0x6A, 0x55, 0x30]);
},
Spawned `com.eightksec.paymentapp`. Resuming main thread!
[KB2001::com.eightksec.paymentapp ]-> [+] libpaymentapp is loaded at 0x78f2965000Found string at address 0x78f29656af: OTg3NDU2
Bytes replaced. Try 123654 as PIN...Memory scan complete.
that error message and its saying that the bytes are replaced. Lets
